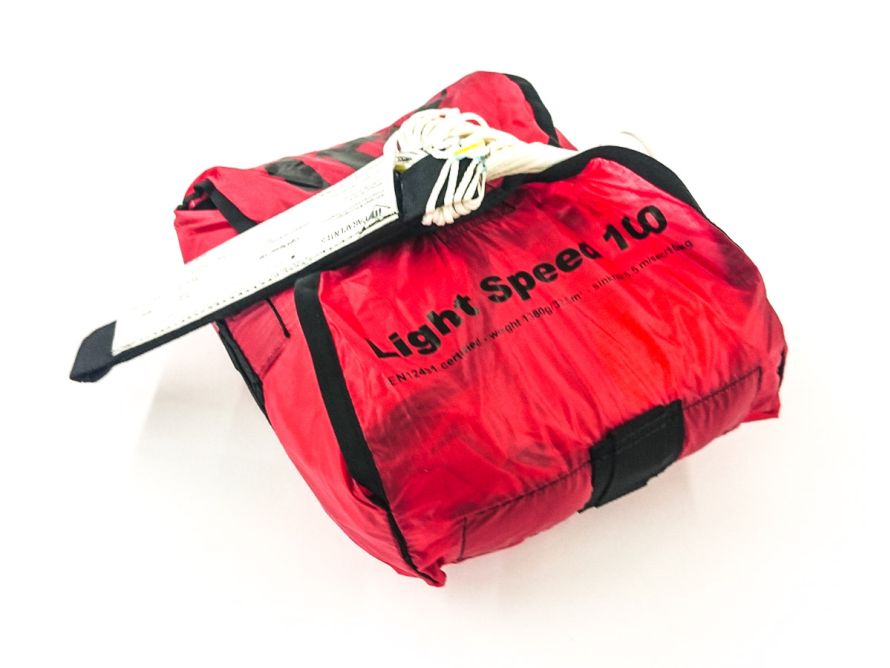

Homologué selon la norme EN, le parachute de secours Light-speed a un rapport poids/ surface/volume qui le place parmi les plus attractifs du marché.
| 100 | 120 | 160 | 220 | |
|---|---|---|---|---|
| Poids / weight | 1,36 kg | 1,53 kg | 1,84 kg | 2,78 kg |
| Surface à plat / Surface area | 32,4 m² | 38,28 m² | 42,96 m² | 66,60 m² |
| Surface projetée / Area proj. | 19.2 m/s | 23.27 m/s | 27.72 m/s | 43.18 m/s |
| PTV max / max N-flight) | 100 kg | 120 kg | 160 kg | 220 kg |
| Hauteur de suspentage / Line height suspention | 4,56 m | 4,56 m | 5,22 m | 6,20 m |
| Matériaux / Materials | Tissus Domnico 20D | Tissus Domnico 20D | Tissus Domnico 20D | Tissus Domnico 20D |
| Homologation / Certification | EN-12491 / LTF-9109 | EN-12491 / LTF-9109 | EN-12491 / LTF-9109 | EN-12491 / LTF-9109 |

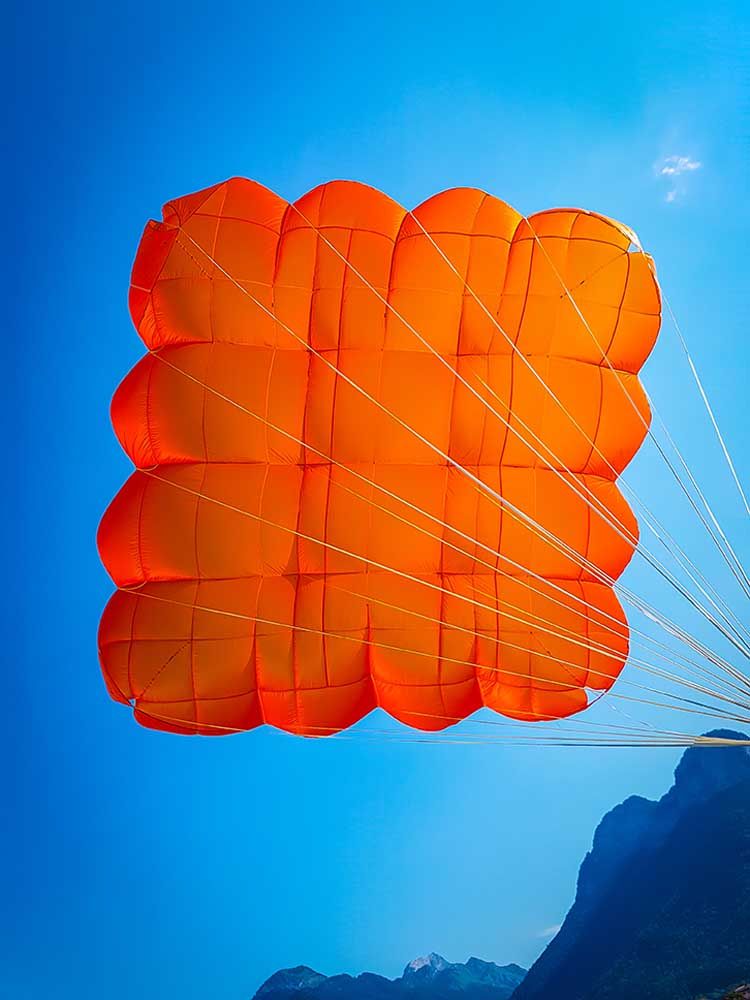

Our latest preserve parachute, the DRAGON, benefits from the latest innovations in terms of square rescue parachute design and technology.
It offers more safety and performance than conventional Apex round parachutes.
A low sink rate, high pendulum stability and a very fast opening sequence, are the strong assets making the DRAGON one of the most powerful emergency parachutes on today’s market.
Available in four sizes, it will cover the entire (50 to 235 kg) weight range.
Its advantages compared to a conventional model:
| 100 | 120 | 160 | 235 | |
|---|---|---|---|---|
| Poids / weight | 1.5 kg | 1,95 kg | 2,4 kg | 2,95 kg |
| Surface / Surface area | 25 m² | 37 m² | 41 m² | 57 m² |
| Taux de chute / Sink rate | 4.9 m/s | 4.7 m/s | 160 kg = 5.6 m/s 155 kg = 5.5 m/s |
5.5 m/s |
| PTV max / max N-flight) | 100 kg | 120 kg | LTF = 160 kg EN = 155 kg |
235 kg |
| Longueur totale / Total length | 6,48 m | 7,68 m | 8,02 m | 10,57 m |
| Matériaux / Materials | Tissus Domnico 20D | Tissus Domnico 20D | Tissus Domnico 20D | Tissus Domnico 20D |
| Homologation / Certification | EN-12491 / LTF-9109 | EN-12491 / LTF-9109 | EN-12491 / LTF-9109 | EN-12491 / LTF-9109 |
| Longueur plié / Length (L) | 19 cm | 20,5 cm | 22 cm | 23 cm |
| Largeur plié / Width (P) | 23,5 cm | 25 cm | 25 cm | 27,5 cm |
| Hauteur plié / Height (H) | 10 cm | 10 cm | 11 cm | 13 cm |
| Volume plié / Folded volume | 4,5 l | 5,1 l | 6,05 l | 8,2 l |
