DRAGON

THE SQUARE RESERVE PARACHUTE MADE BY ITV !

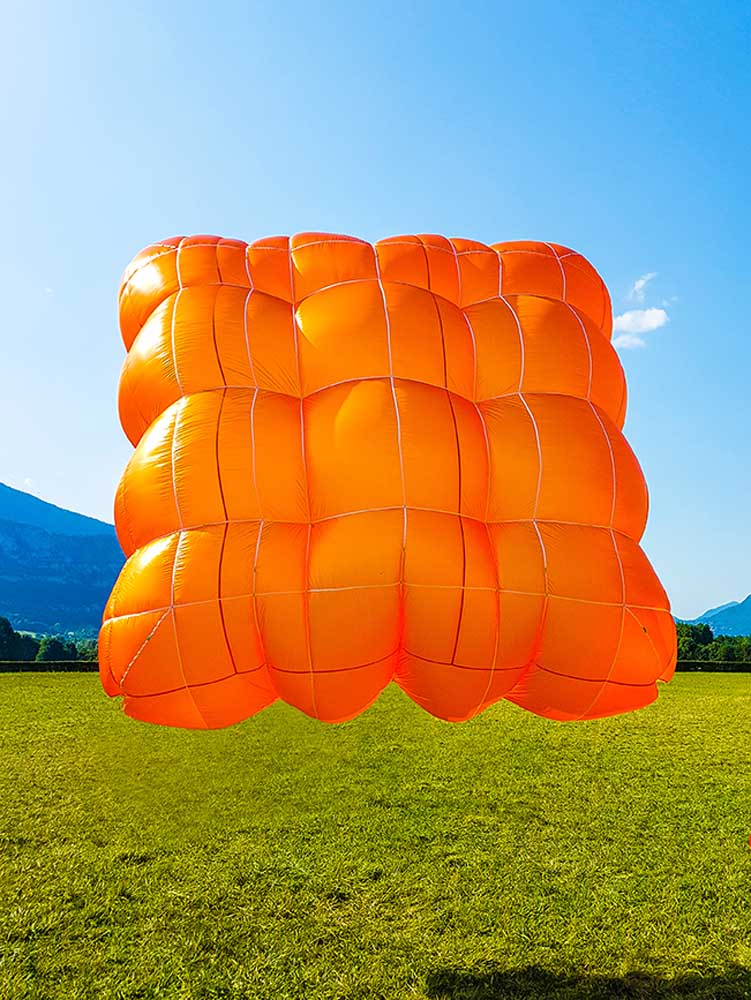

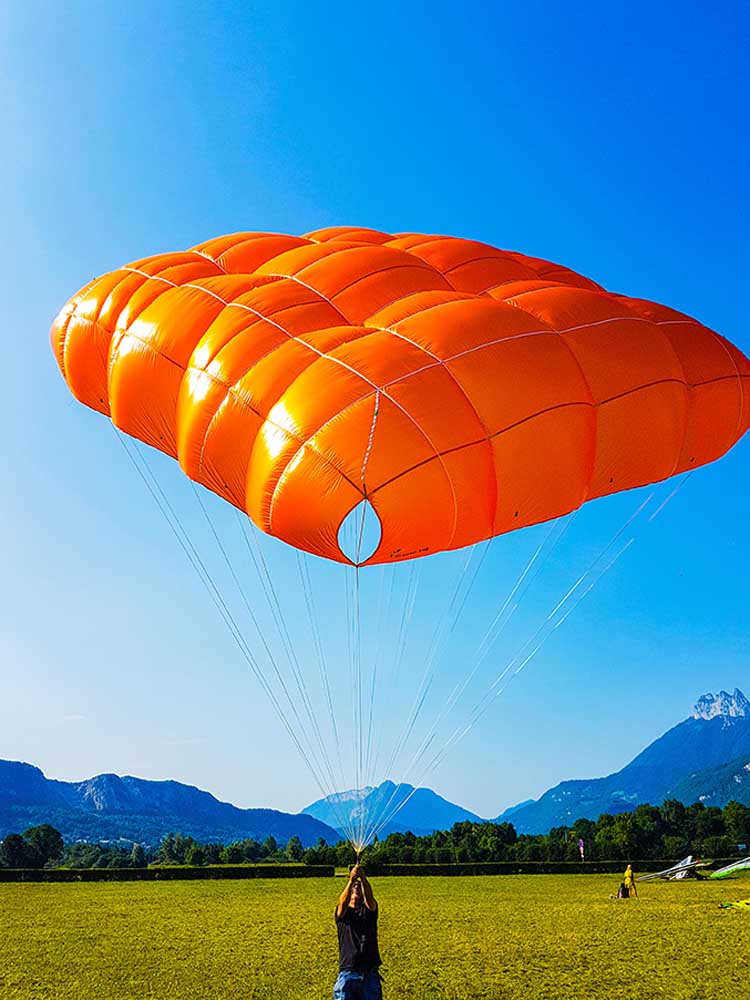

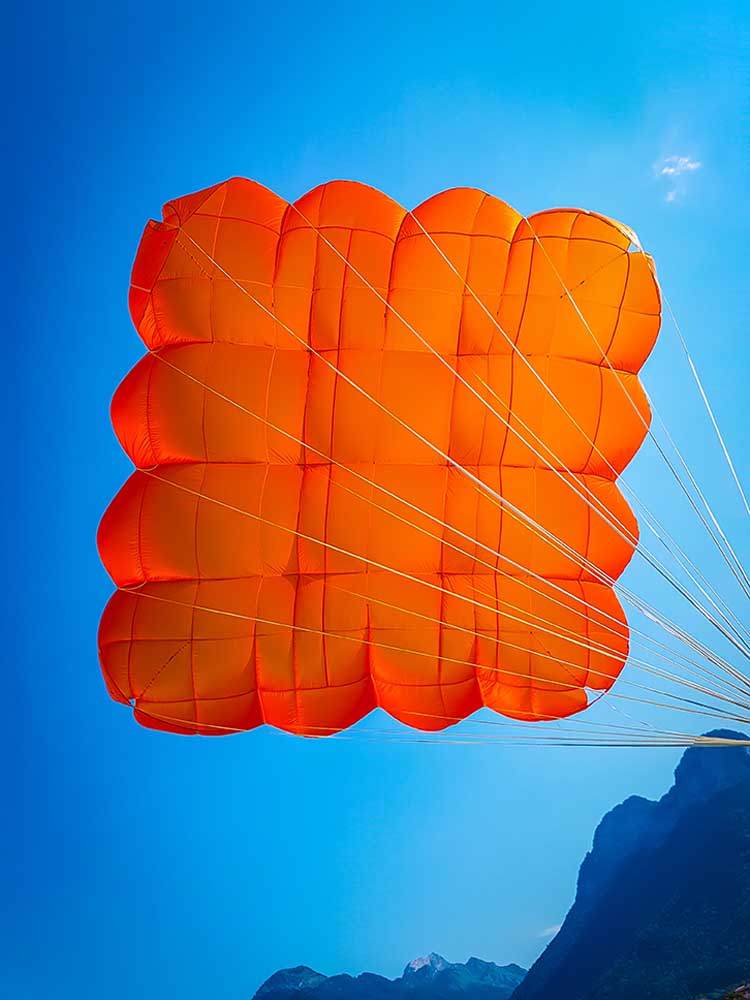

Our latest preserve parachute, the DRAGON, benefits from the latest innovations in terms of square rescue parachute design and technology.
It offers more safety and performance than conventional Apex round parachutes.

A low sink rate, high pendulum stability and a very fast opening sequence, are the strong assets making the DRAGON one of the most powerful emergency parachutes on today’s market.
Available in four sizes, it will cover the entire (50 to 235 kg) weight range.

Its advantages compared to a conventional model:

Very fast opening speed ( near 3 seconds less than the maximum certification 5 seconds requirements).
Low sink rate
Very high pendulum stability, thanks to its self-stabilization system.

Interested in this product ?

Technical data

	100	120	160	235
Poids / weight	1.5 kg	1,95 kg	2,4 kg	2,95 kg
Surface / Surface area	25 m²	37 m²	41 m²	57 m²
Taux de chute / Sink rate	4.9 m/s	4.7 m/s	160 kg = 5.6 m/s 155 kg = 5.5 m/s	5.5 m/s
PTV max / max N-flight)	100 kg	120 kg	LTF = 160 kg EN = 155 kg	235 kg
Longueur totale / Total length	6,48 m	7,68 m	8,02 m	10,57 m
Matériaux / Materials	Tissus Domnico 20D	Tissus Domnico 20D	Tissus Domnico 20D	Tissus Domnico 20D
Homologation / Certification	EN-12491 / LTF-9109	EN-12491 / LTF-9109	EN-12491 / LTF-9109	EN-12491 / LTF-9109
Longueur plié / Length (L)	19 cm	20,5 cm	22 cm	23 cm
Largeur plié / Width (P)	23,5 cm	25 cm	25 cm	27,5 cm
Hauteur plié / Height (H)	10 cm	10 cm	11 cm	13 cm
Volume plié / Folded volume	4,5 l	5,1 l	6,05 l	8,2 l

Download DRAGON packing instruction (FR)

Available from your ITV dealer.
